Caproni Vizzola F.4

Caproni Vizzola F.4

National origin:- Italy
Role:- Fighter
Manufacturer:- Caproni
Designer:= F. Fabrizi (design team leader)[1]
First flight:- July 1940
Introduction:- 1942
Retired:- 1945
Primary users:-   Regia Aeronautica
Number built:- 1
Variants:- Caproni Vizzola F.5[1]

The Caproni Vizzola F.4 was an Italian fighter aircraft prototype built by Caproni. It was a single-seat, low-wing cantilever monoplane with retractable landing gear.[1]

Design and Development

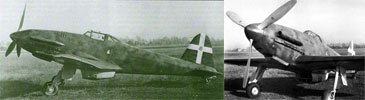

Photo's 01-02: Caproni Vizzola F 4 was an Italian fighter aircraft prototype built by Caproni 167 Gruppe 303ª Squadriglia MM5932

The F.4 was developed in parallel with the Caproni Vizzola F.5, with which it shared a common airframe. Design began in late 1937 by a team led by F. Fabrizi. The aircraft had a welded steel-tube fuselage and wooden wing; the fuselage was covered with flush-riveted duralumin, while the wing had a stressed plywood skin. Fabrizi and his design team intended the F.4 (standing for Fabrizi 4) to be powered by a 12-cylinder Isotta-Fraschini Asso ("Ace") 121 R.C.40 water-cooled engine rated at 715 kilowatts at 4,000 meters (960 horsepower at 13,125 feet), but the Italian Air Ministry preferred that the Asso not be used in fighters; the F.4 project therefore was halted prior to construction of a prototype in favor of continued development of the F.5, which employed a radial engine.[2]

In the summer of 1939, Italy received its first Daimler-Benz DB 601A -- a liquid-cooled inverted V12 engine rated at 876 kilowatts (1,175 horsepower) -- from Germany. This gave the F.4 project a new lease on life, as the Air Ministry approved of its use in fighters. The last of 12 pre-production F.5 aircraft ordered for the Regia Aeronautica (Italian Royal Air Force) was selected for conversion into the F.4 prototype powered by the DB 601A. It flew for the first time in July 1940.[2]

No further F.4s were ordered, and a proposal to build a production model powered by an Alfa Romeo-built DB 601A as the F.5bis was dropped in favor of pursuing development of the more advanced Caproni Vizzola F.6M.[2]

Operational history

The Regia Aeronautica assigned the lone F.4 prototype to the 303ª Squadriglia, which operated it experimentally during 1942.[2]

Operators

  Italy - Regia Aeronautica

Caproni Vizzola F.4

General characteristics

Data from Italian Civil and Military Aircraft 1930-1945[1]

General characteristics
Crew: 1
Length: 8.90 m (29 ft 2.33 in)
Wingspan: 11.29 m (37 ft 0.5 in)
Height: 2.90 m (9 ft 6.125 in)
Wing area: 17.60 m² (189.45 ft²)
Empty weight: 2,462 kg (5,428 lb)
Gross weight: 3,000 kg (6,614 lb)
Powerplant: 1 × Daimler-Benz DB 601A liquid-cooled inverted V12 piston, 876 kW (1,175 hp) each
Performance
Maximum speed: 550 km/h (342 mph) at 3,750 m (12,305 ft).
Maximum Range: is at 435 km/h (270 mph).
Armament Guns:
2 × 12.7 mm (0.5 in) forward-firing Breda-SAFAT machine guns
Underfuselage (non standard) hardpoint 1,000 kg (2,200 lb) bomb or 1 × 300 L (79.3 US gal) drop tank
Hardpoints on wings: 160 kilograms (350 lb) bombs or 2 × 150 litres (39.6 US gal) drop tanks



Caproni Vizzola F 4 was an Italian fighter aircraft prototype built by Caproni 167G303SA MM5932 01

Caproni Vizzola F 4 was an Italian fighter aircraft prototype built by Caproni 167G303SA MM5932 02

IL-2 Sturmovik Cliffs of Dover - COD/CLOD skins - No 3d model at this stage


    Citations:

  1. Thompson, Jonathan W. (1963). Italian Civil and Military aircraft 1930-1945. USA: Aero Publishers Inc. ISBN 0-8168-6500-0.
  2. Green and Swanborough, p. 109

    Bibliography:

  • Thompson, Jonathan W. (1963). Italian Civil and Military aircraft 1930-1945. USA: Aero Publishers Inc. ISBN 0-8168-6500-0.
  • Green and Swanborough, p. 109
