Iwo Jima - Raiding Japan - 7AF North American P-51 Mustang photo gallery

USAF 7AF emblem

Iwo Jima - Raiding Japan - 7AF

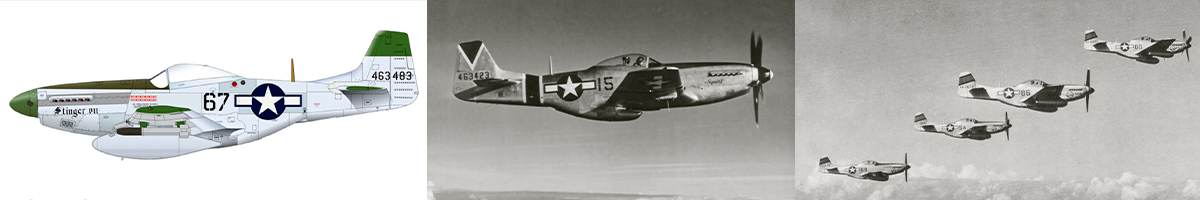

15th Fighter Group P-51 Mustang photo gallery header

USAF 15th Fighter Group emblem

15th Fighter Group

15th Fighter Group

Constituted as 15th Pursuit Group (Fighter) on 20 Nov 1940. Activated in Hawaii on 1 Dec 1940. Redesignated 15th Pursuit Group (Interceptor) in Feb 1942, and 15th Fighter Group in May 1942. Served as part of the defense force for the Hawaiian Islands, using A-12, OA-9, B-12, P-36, P-39, and P-40 aircraft. The Japanese attack on Hawaii on 7 Dec 1941 caused numerous casualties in the group and destroyed many of its aircraft; nevertheless, during the raid several of the group's pilots succeeded in taking off and in destroying some enemy planes, including four shot down by Lt George Welch and two credited to Lt Kenneth M Taylor. Afterward the group, which was remanned, reorganized, and assigned to Seventh AF, remained part of the Hawaiian defense system. Sent squadrons (including some that had been attached) to the Central or South Pacific at various times for operations against the Japanese. Began training in Apr 1944 for very-long-range escort missions. Obtained P-51 aircraft late in 1944. Moved to Iwo Jima in Feb 1945. Supported the invasion force on Iwo early in Mar by bombing and strafing trenches, cave entrances, troop concentrations, and storage areas. Began strikes against enemy airfields, shipping, and military installations in the Bonin Islands by the middle of Mar. Flew its first mission to Japan on 7 Apr 1945, receiving a DUC for escorting 8=29's that bombed the Nakajima aircraft plant near Tokyo. Struck Japanese airfields on Kyushu late in Apr and early in May 1945 to curtail the enemy's suicide attacks against the invasion force at Okinawa. Also hit enemy troop trains, small factories, gun positions, and hangars in the Bonins and Japan. Assigned to Twentieth AF during the summer of 1945. Continued its fighter sweeps against Japanese airfields and other targets, and flew longrange escort missions to Japanese cities until the end of the war. Transferred, without personnel and equipment, in Nov 1945 to Hawaii, where the group was remanned and re-equipped. Inactivated on 15 Oct 1946.

Redesignated 15th Fighter Group (Air Defense). Activated in the US on 18 Aug 1955. Assigned to Air Defense Command.

Squadrons. 6th: 1943-1944. 12th: 1942. 18th: 1943-1944. 45th: 1940-1946. 46th: 1940-1944. 47th: 1940-1946; 1955-. 78th: 1943-1946.

Stations. Wheeler Field, TH, 1 Dec 1940; Bellows Field, TH, 3 Jun 1944-5 Feb 1945; South Field, Iwo Jima, 6 Mar 1945; Bellows Field, TH, 25 Nov 1945; Wheeler Field, TH, Feb-15 Oct 1946. Niagara Falls Mun Aprt, NY, 18 Aug 1955-.

Commanders. Maj Clyde K Rich, 1 Dec 1940; Maj Lorry N Tindal, 6 Dec 1940; Lt Col Paul W Blanchard, 20 Sep 1941; Lt Col William 5 Steele, 12 Feb 1942; Lt Col Sherwood E Buckland, 5 Mar 1943; Col James O Beckwith Jr, 27 Sep 1943; Lt Col DeWitt S Spain, 16 Apr 1945; Lt Col Julian E Thomas, 17 May 1945 Col John W Mitchell, 21 Jul 1945; Col William Eades, c. Nov 1945; Col Oswald W Lunde, 25 Nov 1945-15 Oct 1946. Col Stanley E Matthews, 1955-.

Campaigns. Central Pacific; Air Offensive, Japan.

Decorations. Distinguished Unit Citation: Japan, 7 Apr 1945.

Insigne Shield: Or, on a bend azure, two (2) terrestrial lightning flashes issuant from base of the first, over all a gunsight counterchanged. Motto: Prosequor Alibi - Pursue with Wings. (Approved - Oct 1942.)

15th Fighter Group P-51 Mustang photo gallery header

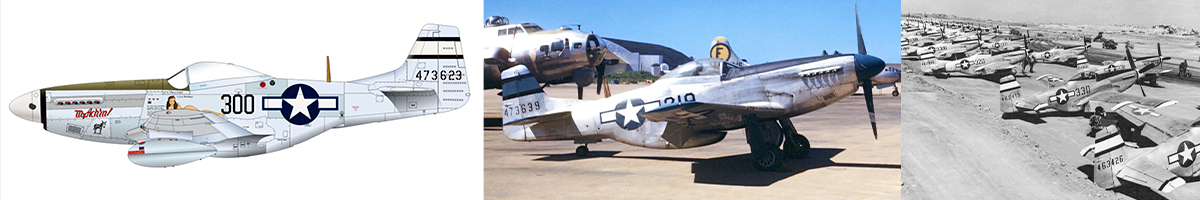

21st Fighter Group

Constituted as 21st Fighter Group on 31 Mar 1944. Activated in Hawaii on 21 Apr 1944. Assigned to Seventh AF and served as part of the defense force for the Hawaiian Islands. Equipped first with P-39, later with P-38, and still later (Jan 1945) with P-51 aircraft. Moved to Iwo Jima, Feb-Mar 1945. Sustained some casualties when Japanese troops attacked the group's camp on the night of 26/27 Mar 1945, but flew first combat mission the following day, bombing and strafing airfields on Haha Jima. Flew its first mission to Japan on 7 Apr, being awarded a DUC for escorting B-29's that struck the heavily-defended Nakajima aircraft factory near Tokyo. Operations from Iwo Jima included attacking airfields that the enemy was using to launch suicide planes against the Allied forces on Okinawa; striking enemy barracks, airfields, and shipping in the Bonins and Japan; and escorting B-29's that bombed Japanese cities. Assigned to Twentieth AF during the summer of 1945. Trained, participated in aerial reviews, and served as a part of the defense force for Iwo Jima, Saipan, and Guam after the war. Re-equipped with P-47's during the summer of 1946. Inactivated on Guam on 10 Oct 1946.

Redesignated 21st Fighter-Bomber Group. Activated in the US on 1 Jan 1953. Assigned to Tactical Air Command. Equipped for a few months with F-51's, later with F-86's. Moved to France, Nov-Dec 1954, and assigned to United States Air Forces in Europe.

Squadrons. 46th: 1944-1946. 72d: 1944-1946; 1953-. 416th: 1953-. 531st: 1944-1946; 1953-.

Stations. Wheeler Field, TH, 21 Apr 1944; Mokuleia Field, TH, 13 Oct 1944-9 Feb 1945; Central Field, Iwo Jima, 26 Mar 1945; South Field, Iwo Jima, 16 Jul 1945; Isley Field, Saipan, Dec 1945; Northwest Field, Guam, 17 Apr-10 Oct 1946. George AFB, Calif, 1 Jan 1953-26 Nov 1954; Chambley AB, France, 13 Dec 1954-.

Commanders. Col Kenneth R Powell, 21 Apr 1944; Col Charles E Taylor, 14 Jun 1945; Lt Col Charles E Parsons, 15 Oct 1945; Col William Eades, 25 Nov 1945; Col Lester S Harris, Feb-10 Oct 1946. Col Paul P Douglas Jr, 1 Jan 1953; Col Verl D Luehring, 26 Apr 1954; Col R C Franklin Jr, 27 Apr 1955; Lt Col Ira M Sussky, 6 May 1955; Col R C Franklin Jr, 1 Aug 1955-.

Campaigns. Air Offensive, Japan.

Decorations. Distinguished Unit Citation: Japan, 7 Apr 1945.

Insigne Shield: Azure, a broad sword argent, shaded silver, hilt and pommel or, shaded yellow, outlined of the field, between four red lightning streaks proper, two and two, bendwise. Motto: Fortitudo Et Preparatio - Strength and Preparedness. (Approved 23 Jul 1957.)

Battle of Iwo Jima

Battle of Iwo Jima

The American invasion of Iwo Jima began on February 19, 1945, and continued to March 26, 1945. The battle was a major initiative of the Pacific Campaign of World War II. The Marine invasion, known as "Operation Detachment", was charged with the mission of capturing the airfields on the island for use by P-51 fighters, and rescue of damaged heavy bombers that were not able to reach their main bases at Guam and Saipan; until then Japanese warplanes from there had harried U.S. bombing missions to Tokyo.

The battle was marked by some of the fiercest fighting of the War. The Imperial Japanese Army positions on the island were heavily fortified, with vast bunkers, hidden artillery, and 18 kilometres (11 mi) of tunnels. The battle was the first U.S. attack on the Japanese Home Islands and the Imperial soldiers defended their positions tenaciously. Of the 21,000 Japanese soldiers present at the beginning of the battle, over 19,000 were killed and only 1,083 taken prisoner.

One of the first objectives after landing on the beachhead was the taking of Mount Suribachi. At the second raising of a flag on the peak, Joe Rosenthal photographed six Marines raising the United States flag on the fourth day of the battle (February 23).

The photograph was extremely popular, and won the Pulitzer Prize for Photography that same year. It is regarded as one of the most significant and recognizable images of the war.

After the fall of Mount Suribachi in the south, the Japanese still held a strong position throughout the island. General Tadamichi Kuribayashi still had the equivalent of eight infantry battalions, a tank regiment, two artillery, and three heavy mortar battalions, plus the 5,000 gunners and naval infantry. With the landing area secure, more troops and heavy equipment came ashore and the invasion proceeded north to capture the airfields and the remainder of the island. Most Japanese soldiers fought to the death. On the night of March 25, a 300-man Japanese force launched a final counterattack led by Kuribayashi. The island was officially declared "secured" the following morning.

According to the U.S. Navy, "The 36-day (Iwo Jima) assault resulted in more than 26,000 American casualties, including 6,800 dead."[36] Comparatively, the 82-day Battle of Okinawa lasted from early April until mid-June 1945 and U.S. (five Army, two Marine Corps Divisions and Navy personnel on ships) casualties were over 62,000 of whom over 12,000 were killed or missing, while the Battle of the Bulge lasted 40 days (16 December 1944 – 25 January 1945) with almost 90,000 U.S. casualties comprising 19,000 killed, 47,500 wounded and 23,000 captured or missing.

After Iwo Jima was declared secured, about 3,000 Japanese soldiers were left alive in the island's warren of caves and tunnels. Those who could not bring themselves to commit suicide hid in the caves during the day and came out at night to prowl for provisions. Some did eventually surrender and were surprised that the Americans often received them with compassion – offering them water, cigarettes, or coffee. The last of these stragglers, two of Lieutenant Toshihiko Ohno's men (Ohno's body was never found), Kōfuku Yamakage and Rikio Matsudo, lasted three and a half years, surrendering on January 6, 1949.

The U.S. military occupied Iwo Jima until June 26, 1968, when it was returned to Japan.

Specifications (P-51D Mustang)

Data from Erection and Maintenance Manual for P-51D and P-51K,[140]
P-51 Tactical Planning Characteristics & Performance Chart,[141]
The Great Book of Fighters,[142] and Quest for Performance[143]

General characteristics

Crew: 1
Length: 32 ft 3 in (9.83 m)
Wingspan: 37 ft (11 m)
Height: 13 ft 4.5 in (4.077 m) tail wheel on ground, vertical propeller blade
Wing area: 235 sq ft (21.8 m2)
Aspect ratio: 5.83
Airfoil: NAA/NACA 45-100 / NAA/NACA 45-100
Empty weight: 7,635 lb (3,463 kg)
Gross weight: 9,200 lb (4,173 kg)
Max takeoff weight: 12,100 lb (5,488 kg) 5,490
Fuel capacity: 269 US gal (224 imp gal; 1,020 l)
Zero-lift drag coefficient: 0.0163
Drag area: 3.80 sqft (0.35 m²)
Powerplant: 1 × Packard (Rolls Royce) V-1650-7 Merlin 12-cylinder liquid cooled engine,
1,490 hp (1,110 kW) at 3,000 rpm;[144] 1,720 hp (1,280 kW) at WEP
Propellers: 4-bladed Hamilton Standard constant-speed, variable-pitch, 11 ft 2 in (3.40 m) diameter

Performance

Maximum speed: 440 mph (710 km/h, 383 kn)
Cruise speed: 362 mph (583 km/h, 315 kn)
Stall speed: 100 mph (160 km/h, 87 kn)
Range: 1,650 mi (2,660 km, 1,434 nmi) with external tanks
Service ceiling: 41,900 ft (12,800 m)
Rate of climb: 3,200 ft/min (16 m/s)
Lift-to-drag: 14.6
Wing loading: 39 lb/sq ft (190 kg/m2)
Power/mass: 0.18 hp/lb (300 W/kg)
Recommended Mach limit 0.8

Armament

Guns:
6 × 0.50 caliber (12.7mm) AN/M2 Browning machine guns with 1,840 total rounds (380 rounds for each on the inboard pair and 270 rounds for each of the outer two pair)
Rockets:
6 or 10 × 5.0 in (127 mm) T64 HVAR rockets (P-51D-25, P-51K-10 on)[note 8]
Bombs:
1 × 100 lb (45 kg) or 250 lb (110 kg) bomb or 500 lb (230 kg) bomb on hardpoint under each wing[145]

 Flight Simulators


   IL-2 Sturmovik 'Cliff's of Dover' Blitz

   IL-2 Sturmovik Battle of Stalingrad

   DCS World - has no 3D model







 Royal Air Force Debden Map

 Moscow Russia Map



    North American P-51 Mustang Notes

  1. Among Allied aircraft, the P-51's claimed victory total in World War II was second to the carrier-borne Grumman F6F Hellcat.[12]
  2. Because the new fighter was designed to a British, rather than an American or USAAC specification, it was allocated a private-venture civil designation instead of the more usual XP- (eXperimental Pursuit) group.
  3. For more specific information on the P-51's airfoil, known as the NAA/NACA 45-100 series, see[21]
  4. This was one of the last US applications of gun synchronization - later American single piston-engined fighters, including later models of the Mustang, all had their gun armament concentrated in the wings.
  5. One of the NA-73s given to the army, s/n 41-038 is still in existence and last flew in 1982.[29]
  6. All but three of these FGs flew P-38s, P-40s or P-47s before converting to the Mustang.
  7. Ziemi Czerwieńskiej = Land of Czerwien, RAF Polish units retained the name and the logo of a squadron from the Polish Air Force which fought the Germans in 1939.
  8. The P-51D and K Maintenance manual notes that carrying 1,000 lb bombs was not recommended, because the racks were not designed for them.[146] Six rockets could be carried on removable Zero Rail launchers with the wing racks installed, 10 without wing racks.[147]

    North American P-51 Mustang Citations

  1. P-51 Mustang Fighter, Boeing.
  2. Scutts, Jerry (13 November 1995), Mustang Aces of the Ninth & Fifteenth Air Forces & the RAF (book), p. 47, ISBN 9781855325838.
  3. Hickman; Kennedy, World War II: North American P-51 Mustang, Military History, About, archived from the original on 1 July 2014, retrieved 19 June 2014
  4. North American P-51D Mustang. National Museum of the United States Air Force. 20 April 2015. Archived from the original on 22 November 2016. Retrieved 22 October 2016.
  5. Guilmartin, John. P-51 Mustang Facts. Britannica.com. Britannica. Retrieved 5 December 2019.
  6. Borth 1945, pp. 92, 244.
  7. Kinzey 1996, p. 5.
  8. Kinzey 1996, p. 57.
  9. Kinzey 1996, p. 56.
  10. Kinzey 1997, pp. 10-13.
  11. Gunston 1984, p. 58.
  12. Tillman 1996, pp. 78-79.
  13. https://www.aerosociety.com/media/10277/on-the-planning-of-british-aircraft-production-for-second-world-war-and-reference-to-james-connolly_2018-09.pdf
  14. Pearcy 1996, p. 15.
  15. Pearcy 1996, p. 30.
  16. Chorlton, Martyn (2012), Allison-Engined P-51 Mustang, Air Vanguard 1, Osprey, p. 11, 12, ISBN 9781780961514
  17. Delve 1999, p. 11.
  18. Delve 1999, p. 12.
  19. Jackson 1992, p. 3.
  20. Wagner 2000, pp. 16, 18.
  21. Selig, Michael. P-51D wingroot section. Archived 8 April 2008 at the Wayback Machine uiuc.edu. Retrieved: 22 March 2008
  22. We also found out, later on, that the heat from the engine actually produced thrust... That horsepower gained by the radiator was only discovered by wind-tunnel investigation... Mustang Designer, Edgar Schmued and the P-51, p. 61. The comparison was between wind-tunnel tests of full-scale models, with normal heating (thermic engine) and without heat production (electric engine).
  23. Yenne 1989, p. 49.
  24. The British Air Ministry sent over the Canadian aerodynamicist Dr Beverley Shenstone in early 1941, who also assisted with the cooling airflow (Ray Wagner Mustang Designer)
  25. Jackson 1992, p. 4.
  26. Kinzey 1996, pp. 5, 11.
  27. Illustrated Encyclopedia of Aircraft, p. 6.
  28. P-51 History: Mustang I. Archived 15 August 2008 at the Wayback Machine The Gathering of Mustangs & Legends. Retrieved: 26 March 2009.
  29. North American XP-51 Prototype No. 4 - NX51NA . Archived 29 October 2013 at the Wayback Machine EAA AirVenture Museum (Experimental Aircraft Association). Retrieved: 23 July 2013.
  30. Marshall, James; Ford, Lowell (21 July 2020). The Birth of the Merlin Mustang. P-51B Mustang: North American's Bastard Stepchild that Saved the Eighth Air Force. Oxford, UK: Osprey Publishing. ISBN 978-1-4728-3967-1.
  31. Model Designations of U.S.A.F. Aircraft Engines. U.S.A.F. Air Material Command. 1949. p. 29. Retrieved 10 September 2020.
  32. Hooker, Stanley (1984). Not much of an engineer. UK: Airlife Books. p. 56. ISBN 978-1-85310-285-1.
  33. Hazen, R. Service Use of High Power Outputs on Allison V-1710 Engines (PDF). Allison Division, General Motors Corporation. Retrieved 5 September 2020.
  34. Merlin 61, 65 & V-1650-3 Power Curves. R.D.E. 66-41. Retrieved 10 September 2020.
  35. Gruenhagen, Robert (1976). Mustang: The Story of the P-51 Fighter (rev. ed.). New York: Arco Publishing. p. 68.
  36. Gruenhagen, Robert W. (1976). Mustang: The Story of the P-51 Fighter (rev. ed.). New York: Arco Publishing. p. 74.
  37. Newby Grant, William (1980). P-51 Mustang. UK: Paul Hamlyn Pty Ltd. p. 24. ISBN 0-7296-0183-8.
  38. Gruenhagen 1980, p. 193.
  39. Gruenhagen 1980, pp. 195-196.
  40. James Bjorkman, The P-51 Mustang, Filminspector.com, Retrieved 13 January 2019.
  41. Delve (1994), p. 191
  42. Hatch (1993), p. 15
  43. Born, Charles. British Army Cooperation Tactical Employment of the Mustang I (P-51). Retrieved 5 September 2020.
  44. Gruenhagen 1980, pp. 199-200.
  45. Gruenhagen 1980, pp. 201, 205.
  46. Gunston 1990 p. 39.
  47. Miller 2007, p. 41.
  48. Miller 2007, p. 46.
  49. Miller 2007, p. 42.
  50. Hastings 1979, pp. 214-215.
  51. Boylan 1955, p. 154.
  52. Boylan 1955, p. 155.
  53. Boylan 1955, pp. 155-156.
  54. Parker, Dana T. (19 October 2013). Building Victory: Aircraft Manufacturing in the Los Angeles Area in World War II. pp. 77, 90-92. ISBN 978-0-9897906-0-4..
  55. Dean 1997, p. 338.
  56. Spick 1983, p. 111.
  57. Robertie, William G (December 1974). Cobbler College (PDF). Second Air Division Association. Retrieved 2 June 2021.
  58. Bowen 1980[page needed]
  59. Sherman, Steven. Aces of the Eighth Air Force in World War Two. Archived 13 August 2011 at Wikiwix Ace pilots, June 1999. Retrieved: 7 August 2011.
  60. Olmsted 1994, p. 144.
  61. Forsyth 1996, pp. 149, 194.
  62. Scutts 1994, p. 58.
  63. Illustrated Encyclopedia of Aircraft, p. 12.
  64. Glancey 2006, p. 188.
  65. Dean 1997, p. 339.
  66. 4th Fighter Wing. Archived 6 September 2006 at the Wayback Machine Global Security. Retrieved: 12 April 2007.
  67. Craven and Cate (1953), pp. 639-640
  68. Hoyt (1987), p. 398
  69. Tillman (2010), pp. 172-173
  70. Craven and Cate (1953), pp. 640-642
  71. Hastings (2007), p. 336
  72. Craven and Cate (1953), pp. 642-644
  73. Kerr (1991), pp. 261-262
  74. Frank (1999), pp. 76-77
  75. Miller (2001), p. 460
  76. Russ (2001), p. 22
  77. Craven and Cate (1953), p. 634
  78. Craven and Cate (1953), pp. 634-635
  79. Russ (2001), p. 24
  80. Russ (2001), p. 25
  81. Thompson, Steve; Smith, Peter C.; Allan, Ian; Spinetta, Lawrence J. (2008). Air Combat Manoeuvres: The Technique and History of Air Fighting for Flight Simulation. p. 233. ISBN 978-1-903223-98-7.
  82. Flight Tests on the North American P-51B-5-NA Airplane Archived 9 January 2008 at the Wayback Machine, Army Air Forces Material Command, Flight Test Engineering Branch, Wright Field, Dayton, Ohio, 24 April 1944
  83. Sims 1980, pp. 134-135.
  84. Rymaszewski, Michael (July 1994). Playing Your Aces. Computer Gaming World. pp. 101-105. Archived from the original on 16 November 2017.
  85. United Press, Last of Prop Fighters Will Go to Museum, The San Bernardino Daily Sun, San Bernardino, California, Saturday 26 January 1957, Volume LXIII, Number 127, page 22.
  86. 'Mustang' Taken Out of Mothballs For Demonstration. The Okaloosa News-Journal, Crestview, Florida, Volume 43, Number 14, page 3E.
  87. Gunston, Bill. North American P-51 Mustang. New York: Gallery Books, 1990. ISBN 0-8317-1402-6.
  88. Wixey 2001, p. 55.
  89. Dominican Republic. Archived 29 August 2006 at the Wayback Machine acig.org. Retrieved: 17 January 2012.
  90. Knaack 1978
  91. Munson 1969, p. 97.
  92. Anderson 1975, pp. 16-43.
  93. Anderson 1975, pp. 50-65.
  94. Hagedorn 1993, p. 147.
  95. Hagedorn 2006[page needed]
  96. Dienst 1985
  97. Gunston and Dorr 1995, p. 107.
  98. Gunston and Dorr 1995, pp. 109-110.
  99. Smith et al. 2004, pp. 78-79, 80, 82.
  100. Smith et al. 2004, pp. 108-114.
  101. Gilman and Clive 1978, p. 314.
  102. Gunston and Dorr 1995, p. 108.
  103. Cavalier Mustangs Archived 27 September 2007 at the Wayback Machine Mustangs-Mustangs. Retrieved: 12 April 2007.
  104. Indonesian Air Arms Overview Archived 16 September 2011 at the Wayback Machine Scramble: Dutch Aviation Society. Retrieved: 12 April 2007.
  105. Kisah pilot TNI AU tembak jatuh pesawat pengebom CIA. merdeka.com. 11 September 2014. Retrieved 10 August 2019.
  106. Darling 2002, p. 66.
  107. Herzog (1982) p. 118
  108. Norton, Bill (2004) - Air War on the Edge - A History of the Israeli Air Force and its Aircraft since 1947
  109. Yenne 1989, p. 62.
  110. North American P-51. Aeronautica Militare. Retrieved 30 May 2019.
  111. Italian Air Force. aeroflight. Retrieved 30 May 2019.
  112. Sgarlato 2003[page needed]
  113. Kahin 2003, p. 90.
  114. Wilson 2010, p. 42.
  115. Blue Diamonds: Philippine Air Force. geocities.com. Retrieved: 21 March 2008.
  116. 309 Sqn photo gallery. Archived 11 November 2009 at the Wayback Machine polishairforce.pl. Retrieved: 18 February 2010.
  117. Mietelski 1981[page needed]
  118. Somali (SOM). Archived 2 September 2011 at the Wayback Machine World Air Forces. Retrieved: 10 September 2011.
  119. Andersson, Lennart (2002). Bortom horisonten: Svensk flygspaning mot Sovjetunionen 1946-1952. ISBN 978-91-7243-015-0.
  120. Gordon 2008, pp. 448-449.
  121. Kyburz, Martin. Racing Mustangs. Archived 21 February 2008 at the Wayback Machine Swiss Mustangs, 2009. Retrieved: 17 January 2012.
  122. Mustang NA P-51C Mustang. Archived 12 March 2007 at the Wayback Machine NASM. Retrieved: 30 September 2010.
  123. P-51s for Sale. Archived 15 July 2006 at the Wayback Machine mustangsmustangs.net. Retrieved: 30 September 2010.
  124. North American P-51. Archived 15 July 2012 at the Wayback Machine FAA Registry. Retrieved: 15 May 2011.
  125. Aircraft rides. Dixie Wing. Retrieved: 1 September 2010. Archived 4 February 2012 at the Wayback Machine
  126. Doug Matthews sets several records flying a P-51 Mustang. World Warbird News. Archived from the original on 2 April 2015. Retrieved 1 April 2015.
  127. Doug Matthews Sets World Records in P-51D. eaa.org. Archived from the original on 2 April 2015. Retrieved 1 April 2015.
  128. July 2012 NAA Record Newsletter. constantcontact.com. Archived from the original on 3 April 2015. Retrieved 1 April 2015.
  129. http://www3.ntsb.gov/aviationquery/brief.aspx?ev_id=86405&key=0 NTSB Report on Penn's fatal mishap Archived 20 June 2013 at the Wayback Machine
  130. The Crash at Farrell's Ice Cream Parlor in Sacramento, CA - September 24, 1972, Postscript. Archived 20 March 2008 at the Wayback Machine Check Six, 2002. Retrieved: 8 February 2014.
  131. Warbird Registry. Retrieved 18 September 2009.
  132. Barboza, Tony. Reno air races crash: NTSB investigates elevator trim tab. Archived 3 January 2015 at the Wayback Machine Los Angeles Times, 14 June 2012. Retrieved: 17 September 2011.
  133. Andrade, John M. U.S. Military Aircraft Designations and Serials since 1909, p. 150. Leicester, UK: Midland Counties Publication, 1979, ISBN 0-904597-22-9
  134. Peçzkowski, Robert. North American P-51D Mustang, p. 28. Sandomierz, Poland: STRATUS s.c., 2009, ISBN 978-83-89450-60-9
  135. AN 01-60JE-4 Parts Catalog USAF Series P-51D and P-51K Aircraft, revised 31 May 1949, p. 55
  136. AN 01-60JE-4 Parts Catalog USAF Series F-51D, TF-51D, and F-51K Aircraft, revised 15 May 1953, p. 55
  137. History of the TP-51C Mustang, Collings Foundation., archived from the original on 31 July 2012, retrieved 17 September 2012
  138. Birch 1987, pp. 96-98.
  139. Australian Built Military Aircraft. www.adf-serials.com. Retrieved 22 June 2021.
  140. AN 01-60JE-2 1944.
  141. P-51 Tactical Planning Characteristics & Performance Chart. Archived from the original on 4 March 2016.
  142. Green and Swanborough 2001
  143. Loftin 2006.
  144. Objects: A19520106000 - Packard (Rolls-Royce) Merlin V-1650-7, Smithsonian National Air and Space Museum, Collections Database, archived from the original on 27 March 2009
  145. Pilot's Flight Operating Instructions, Army Model P-51-D-5, British Model Mustang IV Airplanes (PDF), 5 April 1944, p. 38-40, archived (PDF) from the original on 10 February 2015, retrieved 13 July 2015 - via wwiiaircraftperformance.org.
  146. AN 01-60JE-2 1944, pp. 398-399.
  147. AN 01-60JE-2 1944, p. 400.
  148. Smith, O.S. Other Mustang Kits and Links. Archived 6 June 2012 at the Wayback Machine Unofficial Stewart 51 Builders Page. Retrieved: 24 April 2012.
  149. Where Dreams Take Flight. Archived 4 June 2012 at the Wayback Machine Titan Aircraft, 2012. Retrieved: 24 April 2012.
  150. P-51D Mustang Replica. Archived 3 April 2009 at the Wayback Machine SOS-Eisberg, 2012. Retrieved: 24 April 2012.

    North American P-51 Mustang Bibliography:

  • Aerei da combattimento della Seconda Guerra Mondiale (in Italian). Novara, Italy: De Agostini Editore, 2005.
  • Anderson, Peter N. Mustangs of the RAAF and RNZAF. Sydney, Australia: A.H. & A.W. Reed Pty Ltd, 1975. ISBN 0-589-07130-0.
  • Angelucci, Enzo and Peter Bowers. The American Fighter: The Definitive Guide to American Fighter Aircraft from 1917 to the Present. New York: Orion Books, 1985. ISBN 0-517-56588-9.
  • Aro, Chuck and Colin Aro. World's Fastest Mustangs. Air Enthusiast. No. 13, August-November 1980. pp. 56-62. ISSN 0143-5450
  • Birch, David. Rolls-Royce and the Mustang. Derby, UK: Rolls-Royce Heritage Trust, 1987. ISBN 0-9511710-0-3.
  • Bowen, Ezra. Knights of the Air (Epic of Flight). New York: Time-Life Books, 1980. ISBN 0-8094-3252-8.
  • Borth, Christy. Masters of Mass Production. Indianapolis, Indiana: Bobbs-Merrill Co., 1945.
  • Bowman, Martin W. P-51 Mustang vs Fw 190: Europe 1943-45. Oxford, UK: Osprey Publishing, 2007. ISBN 1-84603-189-3.
  • Boylan, Bernard. Development of the Long Range Escort Fighter. Washington, D.C: USAF Historical Division, Research Studies Institute, Air University, 1955. Retrieved: 15 July 2014.
  • Boyne, Walter J. Clash of Wings. New York: Simon & Schuster, 1994. ISBN 0-684-83915-6.
  • Breffort, Dominique with André Jouineau. Le North-American P-51 Mustang - de 1940 à 1980 (Avions et Pilotes 5)(in French). Paris: Histoire et Collections, 2003. ISBN 2-913903-80-0.
  • Bridgman, Leonard, ed. The North American Mustang. Jane's Fighting Aircraft of World War II. London: Studio, 1946. ISBN 1-85170-493-0.
  • Caldwell, Donald and Richard Muller. The Luftwaffe over Germany - Defense of the Reich. St. Paul, Minnesota: Greenhill books, MBI Publishing, 2007. ISBN 978-185367-712-0.
  • Carson, Leonard Kit. Pursue & Destroy. Granada Hills, California: Sentry Books Inc., 1978. ISBN 0-913194-05-0.
  • Carter, Dustin W. and Birch J. Matthews.Mustang: The Racing Thoroughbred. West Chester, Pennsylvania: Schiffer Publishing Company, 1992. ISBN 978-0-88740-391-0.
  • Cleaver, Tom (April-July 1982). Return of the Razorbacks. Air Enthusiast. No. 18. pp. 26-31. ISSN 0143-5450.
  • Craven, Wesley and James Cate. The Army Air Forces in World War II, Volume Two: Europe, Torch to Pointblank, August 1942 to December 1943. Chicago: University of Chicago, 1949.
  • Darling, Kev. P-51 Mustang (Combat Legend). Shrewsbury, UK: Airlife, 2002. ISBN 1-84037-357-1.
  • Davis, Larry. P-51 Mustang. Carrollton, Texas: Squadron/Signal Publications, Inc., 1995. ISBN 0-89747-350-7.
  • Dean, Francis H. America's Hundred Thousand. Atglen, Pennsylvania: Schiffer Publishing Ltd., 1997. ISBN 0-7643-0072-5.
  • Delve, Ken. The Mustang Story. London: Cassell & Co., 1999. ISBN 1-85409-259-6.
  • Delve, Ken. The Source Book of the RAF. Shrewsbury, Shropshire, UK: Airlife Publishing, 1994. ISBN 1-85310-451-5.
  • Dienst, John and Dan Hagedorn. North American F-51 Mustangs in Latin American Air Force Service. London: Aerofax, 1985. ISBN 0-942548-33-7.
  • Donald, David, ed. Encyclopedia of World Aircraft. Etobicoke, Ontario: Prospero, 1997. ISBN 1-85605-375-X.
  • Dorr, Robert F.. P-51 Mustang (Warbird History). St. Paul, Minnesota: Motorbooks International Publishers, 1995. ISBN 0-7603-0002-X.
  • Ethell, Jeffrey L. Mustang: A Documentary History of the P-51. London: Jane's Publishing, 1981. ISBN 0-531-03736-3
  • Ethell, Jeffrey L. P-51 Mustang: In Color, Photos from World War II and Korea. St. Paul, Minnesota: Motorbooks International Publishers & Wholesalers, 1993. ISBN 0-87938-818-8.
  • Ethell, Jeffrey and Robert Sand. World War II Fighters. Minneapolis, Minnesota: Zenith Imprint, 2002. ISBN 978-0-7603-1354-1.
  • Forsyth, Robert. JV44: The Galland Circus. Burgess Hill, West Sussex, UK: Classic Publications, 1996. ISBN 0-9526867-0-8
  • Furse, Anthony. Wilfrid Freeman: The Genius Behind Allied Survival and Air Supremacy, 1939 to 1945. Staplehurst, UK: Spellmount, 1999. ISBN 1-86227-079-1.
  • Gilman J.D. and J. Clive. KG 200. London: Pan Books Ltd., 1978. ISBN 0-85177-819-4.
  • Glancey, Jonathan. Spitfire: The Illustrated Biography. London: Atlantic Books, 2006. ISBN 978-1-84354-528-6.
  • Gordon, Doug (July-August 2001). Tac Recon Masters: The 66th Tactical Reconnaissance Wing in Europe, Part One. Air Enthusiast (94): 31-39. ISSN 0143-5450.
  • Gordon, Yefim. Soviet Air Power in World War 2. Hinckley, UK: Midland Ian Allan Publishing, 2008. ISBN 978-1-85780-304-4.
  • Grant, William Newby. P-51 Mustang. London: Bison Books, 1980. ISBN 0-89009-320-2.
  • Green, William and Gordon Swanborough. The Great Book of Fighters. St. Paul, Minnesota: MBI Publishing, 2001. ISBN 0-7603-1194-3.
  • Gruenhagen, Robert W. Mustang: The Story of the P-51 Fighter (rev. ed.). New York: Arco Publishing Company, Inc., 1980. ISBN 0-668-04884-0.
  • Gunston, Bill. An Illustrated Guide to Allied Fighters of World War II. London: Salamander Books Ltd, 1981. ISBN 0-668-05228-7.
  • Gunston, Bill. Aerei della seconda guerra mondiale (in Italian). Milan: Peruzzo editore, 1984. No ISBN.
  • Gunston, Bill and Mike Spick. Modern Air Combat. Crescent Books, 1983, ISBN 91-972803-8-0.
  • Gunston, Bill. North American P-51 Mustang. New York: Gallery Books, 1990. ISBN 0-8317-1402-6.
  • Gunston, Bill and Robert F. Dorr. North American P-51 Mustang: The Fighter That Won the War. Wings of Fame, Volume 1. London: Aerospace, 1995, pp. 56-115. ISBN 1-874023-74-3.
  • Hagedorn, Dan. Central American and Caribbean Air Forces. Tonbridge, Kent, UK: Air-Britain (Historians), 1993. ISBN 0-85130-210-6.
  • Hagedorn, Dan. Latin American Air Wars & Aircraft. Crowborough, UK: Hikoki, 2006. ISBN 1-902109-44-9.
  • Hammond, Grant. The Mind of War: John Boyd and American Security, Smithsonian Institution Press, 2001, ISBN 1-56098-941-6.
  • Hastings, Max. Bomber Command. Minneapolis, Minnesota: Zenith Press, 1979. ISBN 978-0-76034-520-7.
  • Hatch, Gardner N.; Winter, Frank H. (1993). P-51 Mustang. Paducah, KY: Turner Publishing Company. ISBN 978-1-56311-080-1.
  • Hess, William N. Fighting Mustang: The Chronicle of the P-51. New York: Doubleday and Company, 1970. ISBN 0-912173-04-1.
  • History, Boeing: P-51 Mustang. Boeing. Retrieved: 24 June 2014.
  • Jackson, Robert. Aircraft of World War II: Development, Weaponry, Specifications. Edison, New Jersey: Chartwell Books, 2003. ISBN 0-7858-1696-8.
  • Jackson, Robert. Mustang: The Operational Record. Shrewsbury, UK: Airlife Publishing Ltd., 1992. ISBN 1-85310-212-1.
  • Jerram, Michael F. P-51 Mustang. Yeovil, UK: Winchmore Publishing Services Ltd., 1984, ISBN 0-85429-423-6.
  • Johnsen, Frederick A. Bell P-39/P-63 Airacobra & Kingcobra. St. Paul, Minnesota: Voyageur Press, 1998. ISBN 1-58007-010-8.
  • Johnsen, Frederick A. North American P-51 Mustang. North Branch, Minnesota: Specialty Press Publishers and Wholesalers, 1996. ISBN 0-933424-68-X.
  • Kaplan, Philip. Fly Navy: Naval Aviators and Carrier Aviation: A History. New York: Michael Friedman Publishing Group Incorporated, 2001. ISBN 1-58663-189-6.
  • Kinzey, Bert. P-51 Mustang in Detail & Scale: Part 1; Prototype through P-51C. Carrollton, Texas: Detail & Scale Inc., 1996. ISBN 1-888974-02-8.
  • Kinzey, Bert. P-51 Mustang in Detail & Scale: Part 2; P-51D thu P-82H. Carrollton, Texas: Detail & Scale Inc., 1997. ISBN 1-888974-03-6
  • Knaack, Marcelle Size. Encyclopedia of U.S. Air Force Aircraft and Missile Systems: Volume 1 Post-World War II Fighters 1945-1973. Washington, D.C.: Office of Air Force History, 1978. ISBN 0-912799-59-5.
  • Lednicer, David A. and Ian J. Gilchrist. A Retrospective: Computational Aerodynamic Analysis Methods Applied to the P-51 Mustang. AIAA paper 91-3288, September 1991.
  • Lednicer, David A. Technical Note: A CFD Evaluation of Three Prominent World War II Fighter Aircraft. Aeronautical Journal, Royal Aeronautical Society, June/July 1995.
  • Lednicer, David A. World War II Fighter Aerodynamics. EAA Sport Aviation, January 1999.
  • Leffingwell, Randy (and David Newhardt, photography). Mustang: 40 Years. St. Paul, Minnesota: Crestline (Imprint of MBI Publishing Company), 2003. ISBN 0-7603-2122-1.
  • Liming, R.A. Mathematics for Computer Graphics. Fallbrook, California: Aero Publishers, 1979. ISBN 978-0-8168-6751-6.
  • Liming, R.A. Practical Analytic Geometry With Applications to Aircraft. New York: The MacMillan Company, 1944.
  • Loftin, LK, Jr. Quest for Performance: The Evolution of Modern Aircraft, NASA SP-468. Washington, D.C.: NASA History Office. Retrieved: 22 April 2006.
  • Lowe, Malcolm V. North American P-51 Mustang (Crowood Aviation Series). Ramsbury, Wiltshire, UK: Crowood Press, 2009. ISBN 978-1-86126-830-3.
  • Loving, George. Woodbine Red Leader: A P-51 Mustang Ace in the Mediterranean Theater. New York: Ballantine Books, 2003. ISBN 0-89141-813-X.
  • Matricardi, Paolo. Aerei militari: Caccia e Ricognitori(in Italian). Milan: Mondadori Electa, 2006.
  • Mietelski, Michał, Samolot myśliwski Mustang Mk. I-III wyd. I (in Polish). Warsaw: Wydawnictwo Ministerstwa Obrony Narodowej, 1981. ISBN 83-11-06604-3.
  • Miller, Donald L. Eighth Air Force: The American Bomber Crews in Britain. London: Aurum Press, 2007. ISBN 978-1-84513-221-7.
  • Munson, Kenneth. Caccia e aerei da attacco e addestramento dal 1946 ad oggi(in Italian). Torino: Editrice S.A.I.E., 1969. No ISBN.
  • O'Leary, Michael. P-51 Mustang: The Story of Manufacturing North American's Legendary World War II Fighter in Original Photos. North Branch, Minnesota: Specialty Press, 2010. ISBN 978-1-58007-152-9.
  • O'Leary, Michael. USAAF Fighters of World War Two. New York: Sterling Publishing Co., 1986. ISBN 0-7137-1839-0.
  • Olmsted, Merle. The 357th Over Europe: the 357th Fighter Group in World War II. St. Paul, Minnesota: Phalanx Publishing, 1994. ISBN 0-933424-73-6.
  • Pace, Steve. Mustang - Thoroughbred Stallion of the Air. Stroud, UK: Fonthill Media, 2012. ISBN 978-1-78155-051-9
  • Pearcy, Arthur. Lend-Lease Aircraft in World War II. Shrewsbury, UK: Airlife Publishing Ltd., 1996. ISBN 1-85310-443-4.
  • Pentagon Over the Islands: The Thirty-Year History of Indonesian Military Aviation. Air Enthusiast Quarterly (2): 154-162. n.d. ISSN 0143-5450.
  • Sgarlato, Nico. Mustang P-51 (in Italian). I Grandi Aerei Storici (Monograph series) N.7, November 2003. Parma, Italy: Delta Editrice. ISSN 1720-0636.
  • Shores, Christopher. The Allison-engined Mustang: A Fighting Combination. Air Enthusiast Quarterly, No. 2, n.d., pp. 191-206. ISSN 0143-5450
  • Sims, Edward H. Fighter Tactics and Strategy 1914-1970. Fallbrook, California: Aero publisher Inc., 1980. ISBN 0-8168-8795-0.
  • Smith, J. Richard, Eddie J. Creek and Peter Petrick. On Special Missions: The Luftwaffe's Research and Experimental Squadrons 1923-1945 (Air War Classics). Hersham, Surrey, UK: Classic Publications, 2004. ISBN 1-903223-33-4.
  • Spick, Mike. Fighter Pilot Tactics. The Techniques of Daylight Air Combat. Cambridge, UK: Patrick Stephens, 1983. ISBN 0-85059-617-3.
  • Spick, Mike. Designed for the Kill: The Jet Fighter—Development and Experience. United States Naval Institute, 1995, ISBN 0-87021-059-9.
  • Stevenson, James. The Pentagon Paradox: The Development of the F-18 Hornet. Naval Institute Press, 1993, ISBN 1-55750-775-9.
  • Tillman, Barrett. Hellcat Aces of World War 2. London: Osprey Aerospace, 1996. ISBN 1-85532-596-9.
  • United States Air Force Museum Guidebook. Wright-Patterson AFB, Ohio: Air Force Museum Foundation, 1975.
  • United States Army Air Force. AN 01-60JE-2: Maintenance and Erection Instructions for Army Model P-51D-5, −10, −15, 20, −25; P-51K-1, −5, −10, −15; British Model Mustang IV Aeroplanes. Evansville, Indiana: U.S.A.A.F, 1944.
  • Wagner, Ray. American Combat Planes of the 20th Century. Reno, Nevada: Jack Bacon & Company, 2004. ISBN 978-0-930083-17-5.
  • Wagner, Ray. Mustang Designer: Edgar Schmued and the P-51. Herndon, Virginia: Smithsonian Institution Press, 2000. ISBN 978-1-56098-994-3.
  • Walker, Jeff. Empire of the Sun. Air Classics, Volume 24, Number 1, January 1988.
  • White, Graham. Allied Aircraft Piston Engines of World War II. Warrendale, Pennsylvania: Society for Automotive Engineers, 1995. ISBN 1-56091-655-9.
  • Wilson, Stewart, ed. Mustang Warbirds: Civil Registered Mustangs of Australia and New Zealand Then and Now. Warbirds of Australia and New Zealand 2010. St Leonards, New South Wales, Australia: Chevron Publishing Group, 2010.
  • Wixey, Ken. Magnificent Mustang: A Production History of the North American P-51. Air Enthusiast, Issue 95, September/October 2001.
  • Yenne, Bill: Rockwell: The Heritage of North American. New York: Crescent Books, 1989. ISBN 0-517-67252-9.
  • Young, Edward (Spring 1994). Counter-Air: 2nd Air Commando Group in Burma & Thailand. Air Enthusiast. No. 53. pp. 10-19. ISSN 0143-5450.

    Magazine References: +

  • Airfix Magazines (English) - http://www.airfix.com/
  • Avions (French) - http://www.aerostories.org/~aerobiblio/rubrique10.html
  • FlyPast (English) - http://www.flypast.com/
  • Flugzeug Publikations GmbH (German) - http://vdmedien.com/flugzeug-publikations-gmbh-hersteller_verlag-vdm-heinz-nickel-33.html
  • Flugzeug Classic (German) - http://www.flugzeugclassic.de/
  • Klassiker (German) - http://shop.flugrevue.de/abo/klassiker-der-luftfahrt
  • Le Fana de L'Aviation (French) - http://boutique.editions-lariviere.fr/site/abonnement-le-fana-de-l-aviation-626-4-6.html
  • Le Fana de L'Aviation (French) - http://www.pdfmagazines.org/tags/Le+Fana+De+L+Aviation/
  • Osprey (English) - http://www.ospreypublishing.com/
  • Revi Magazines (Czech) - http://www.revi.cz/

    Web References: +

  • History of 4th Fighter Group: http://www.4thfightergroupassociation.org/special-collections.html
  • Wikipedia - https://en.wikipedia.org/wiki/North_American_P-51_Mustang
  • Wikipedia, the free encyclopedia: http://en.wikipedia.org/

USAAF Military History Section

USAAF Chronology and War Diaries 1941-1942 1943 1944 1945

United States Army Air Force - USAAF units

USAAF Combat Units



Send Mail
Please help us to improve these articles with any additional information or photo's.
If you should encounter any bugs   broken links,  or display errors just email us.

If you love our website please add a like on facebook

Please donate so we can make this site even better !!



This webpage was updated 11th August 2022

-xxx-
